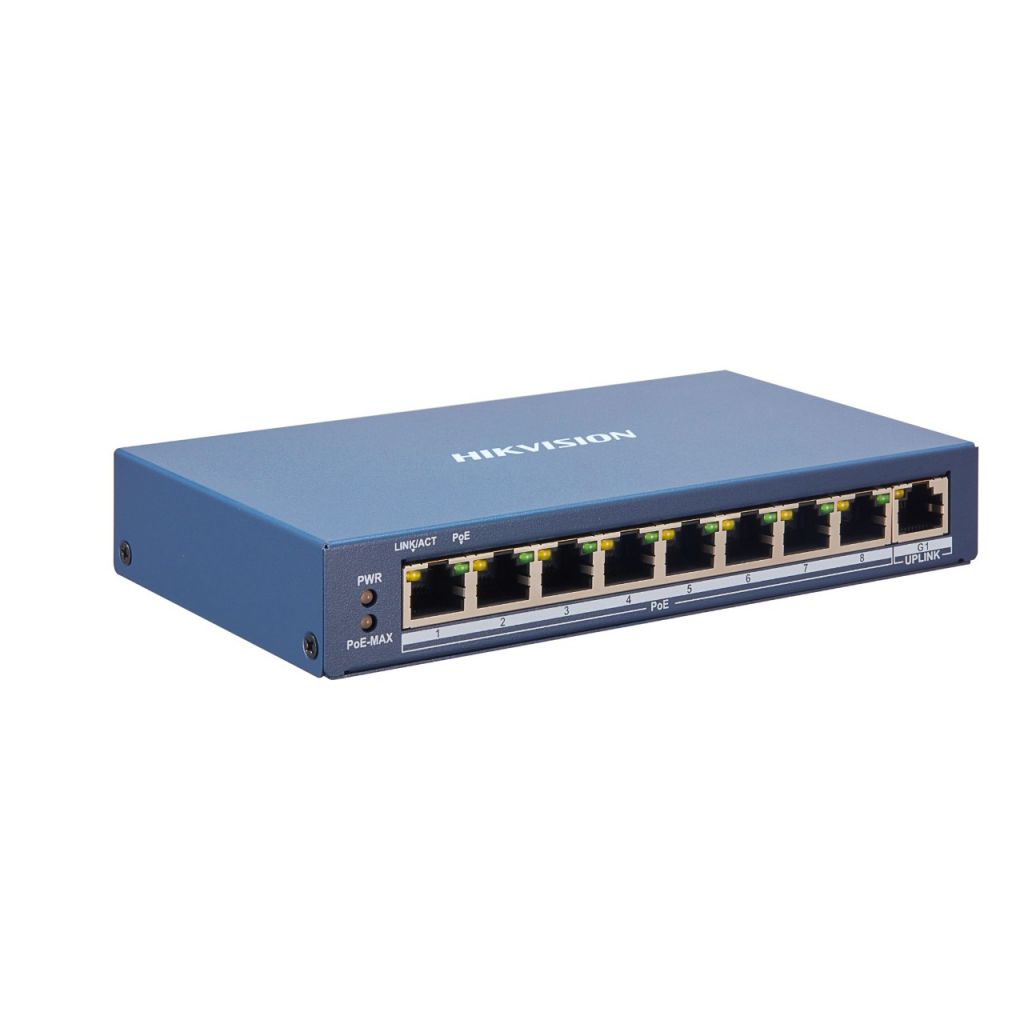

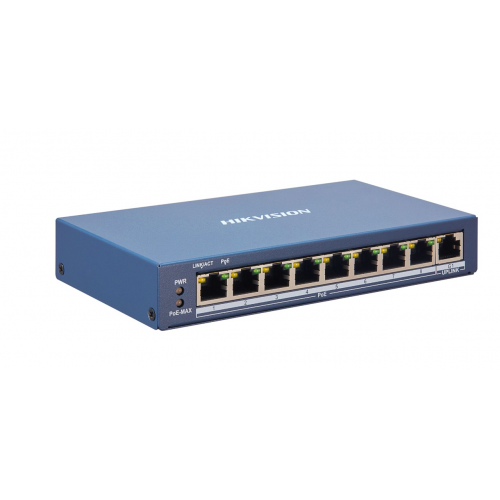

HIKVISION DS-3E1309P-EI, 8 Port, MegaBit, 8 Port PoE, 123W, +1 Port GigaBit Uplink, Y

Ürün geçici olarak temin edilememektedir.
Yorum yapılmamış.
  • Network Parameters
  • Port Number8 × 10/100 Mbps PoE ports, and 1 × Gigabit RJ45 port
  • Port TypeRJ45 port, full duplex, MDI/MDI-X adaptive
  • Working Mode

    Standard mode (default)

    Extend mode

  • StandardIEEE 802.3, IEEE 802.3u, IEEE 802.3x, and IEEE 802.3ab
  • Forwarding ModeStore-and-forward switching
  • MAC Address Table16 K
  • Internal Cache4 Mbits
  • Switching Capacity3.6 Gbps
  • Packet Forwarding Rate2.6784 Mpps
  • PoE Power Supply
  • PoE StandardIEEE 802.3af, IEEE 802.3at
  • PoE Power Pin

    End-span: 1/2(-), 3/6(+)

    Mid-span: 4/5(+), 7/8(-)

    8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)

  • PoE PortPorts 1 to 8
  • Max. Port Power30 W
  • PoE Power Budget110 W
  • Software Function
  • Port ConfigurationSupport rate, flow control, and switch configuration
  • Device MaintenanceSupport remote upgrade, recovering default parameters, viewing logs, configuring basic network parameters.
  • PoE FunctionIEEE 802.3at/af device provides power supply.
  • PoE Configuration

    PoE watchdog: Ports 1 to 8 auto detect and restart the cameras that do not respond.

    PoE enabling: Support

  • General
  • ShellMetal material, fan-free design
  • Net Weight0.35 kg (0.77 lb)
  • Gross Weight1.114 kg (2.45 lb)
  • Dimension (W × H × D)170 mm × 27.6 mm × 93.1 mm (4.76” × 3.47” × 1.09”)
  • Operating Temperature0°C to 40°C (32°F to 104°F)
  • Storage Temperature-40°C to 85°C (-40°F to 185°F)
  • Operating Humidity5% to 95% (no condensation)
  • Relative Humidity5% to 95% (no condensation)
  • Power Supply48 VDC, 2.5 A
  • Max. Power Consumption120 W
  • Approval
  • EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 +A1: 2015); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016)
  • SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013)
  • ChemistryCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No.1907/2006)



Port Sayısı9 Adet
Veri Transfer Hızı10/100 MBPS
PoE Desteği8 Adet
SFP YuvaYok
Rack KasaUyumlu Değil
YönetimYönetilemez
