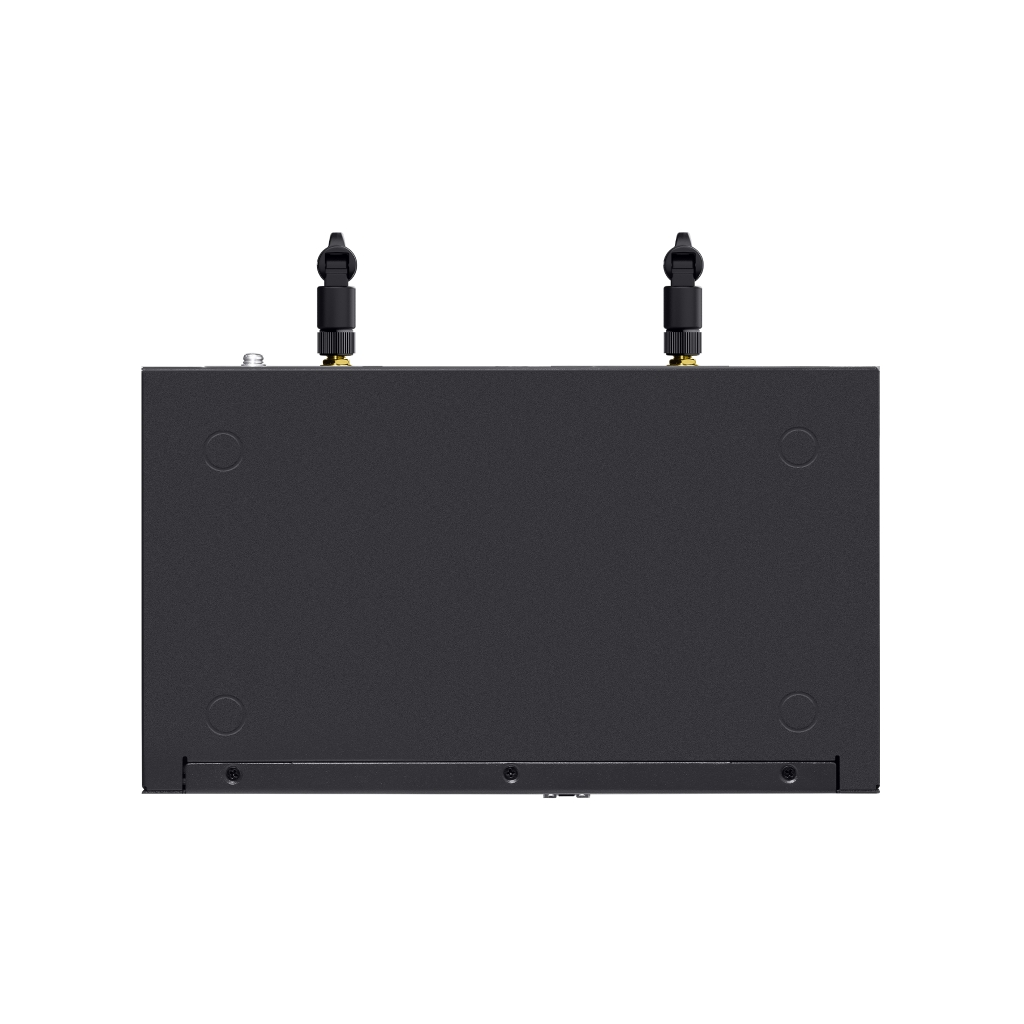

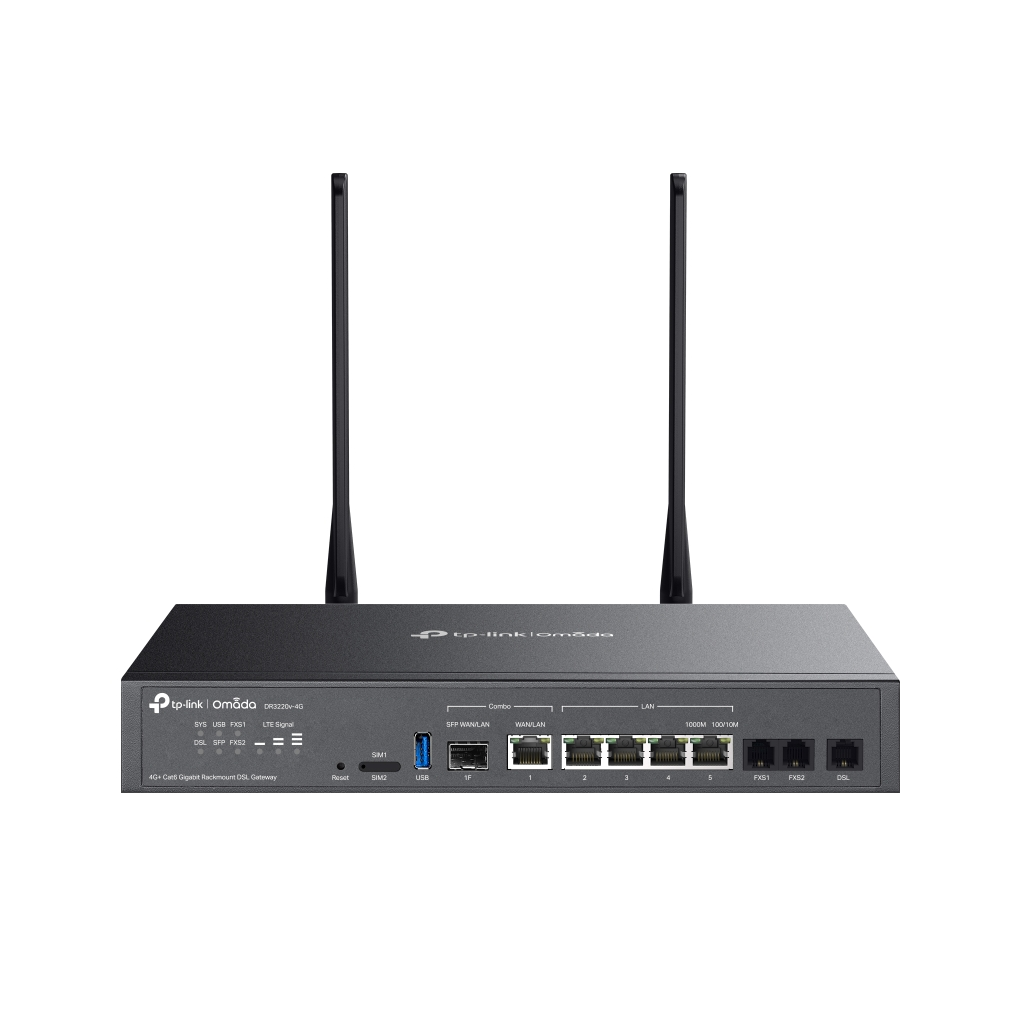

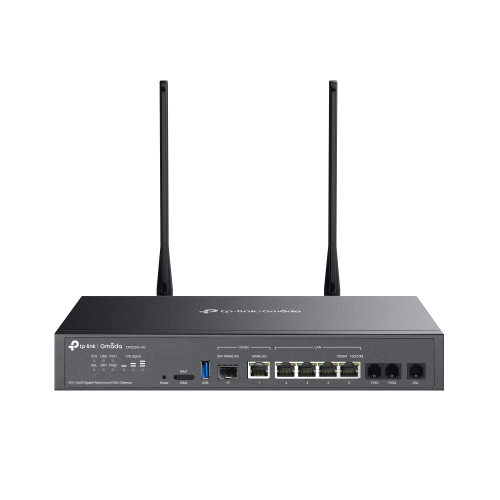

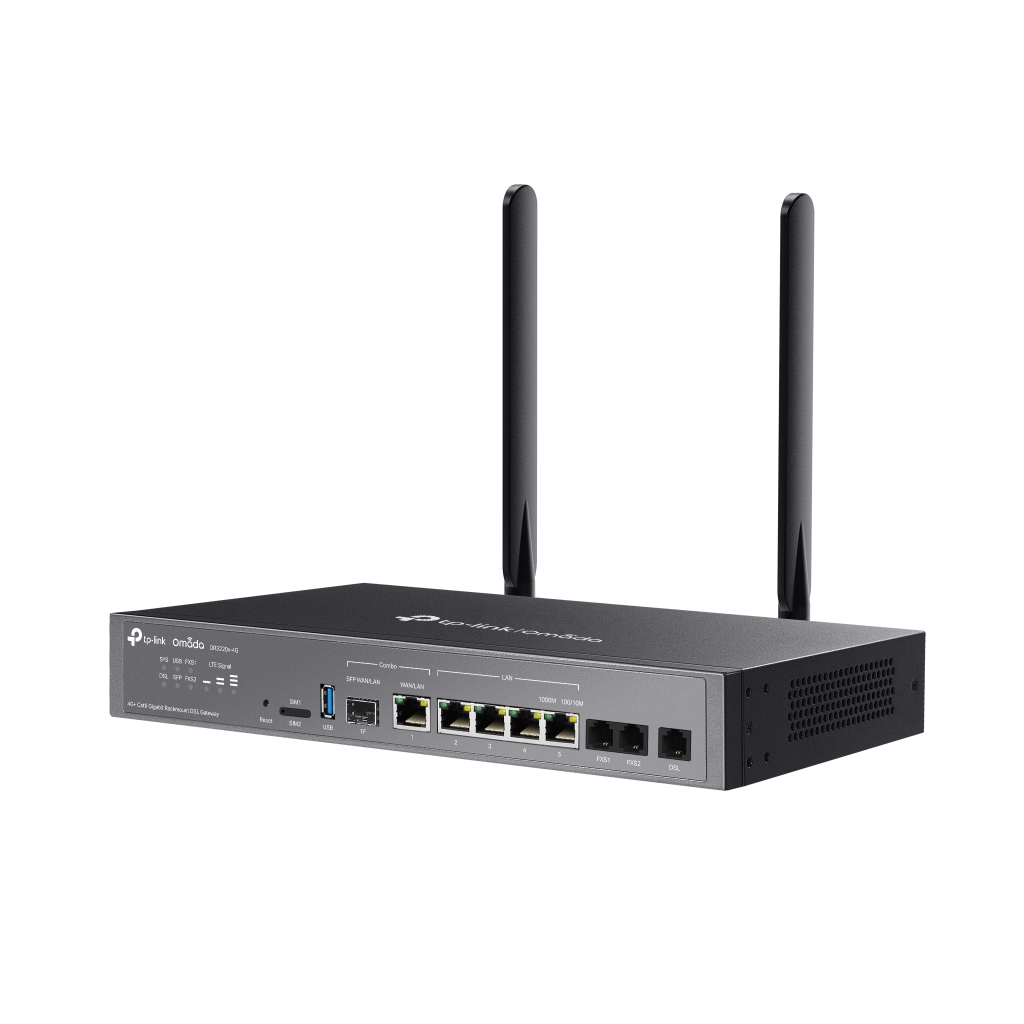

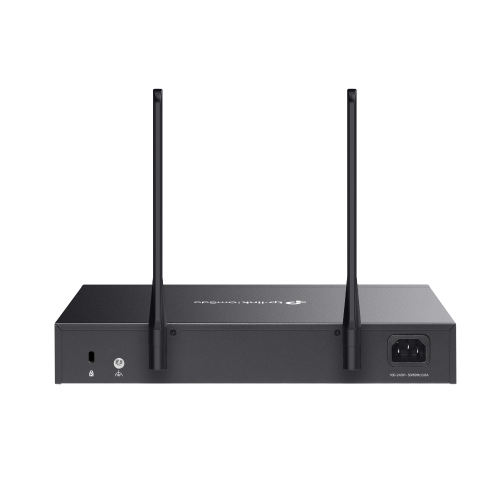

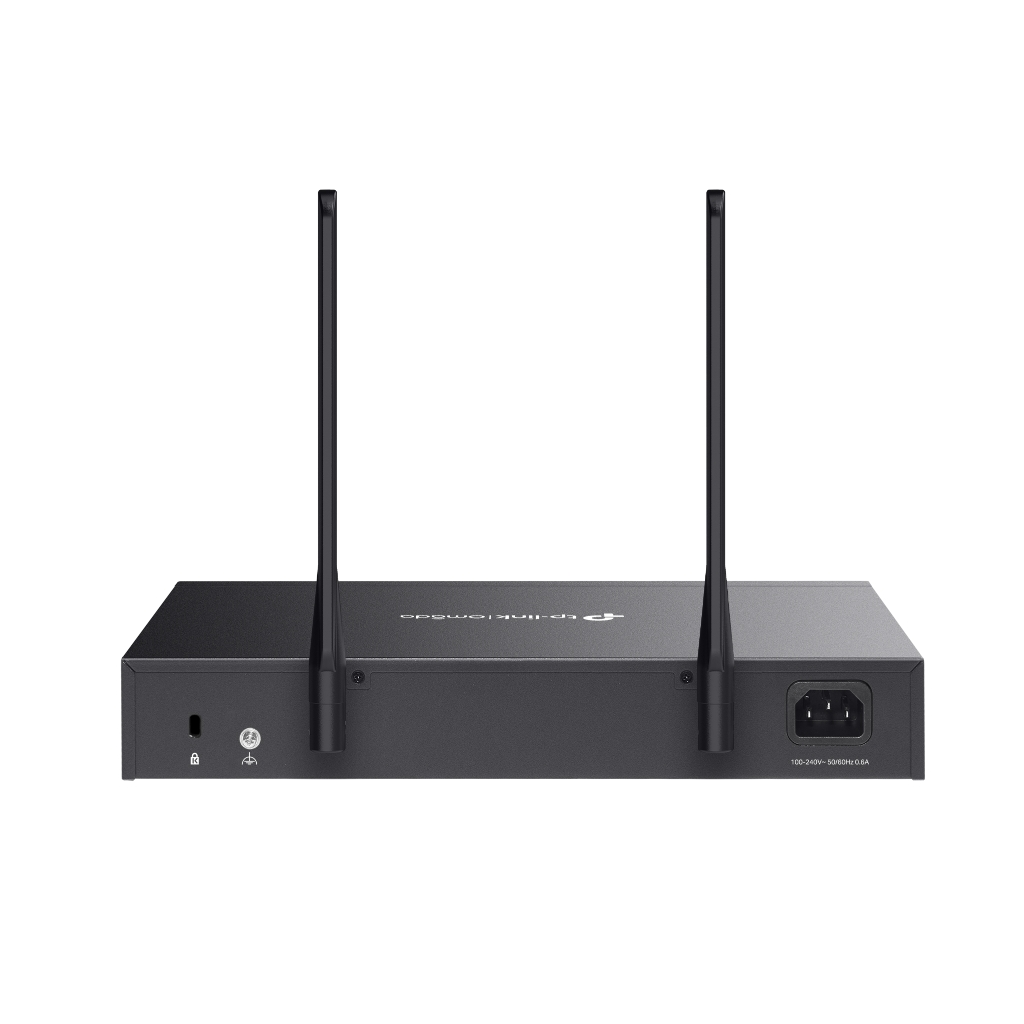

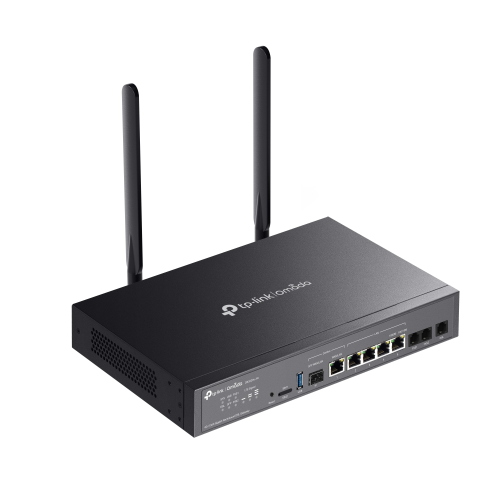

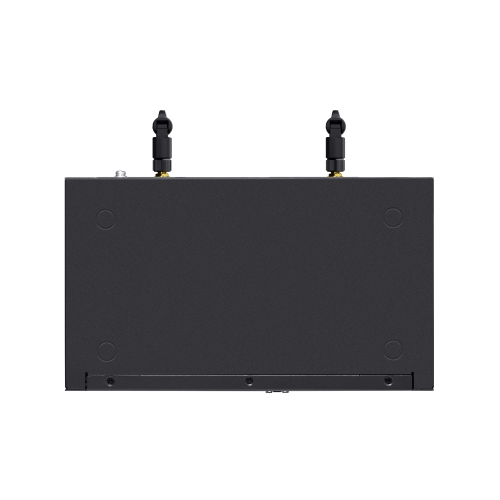

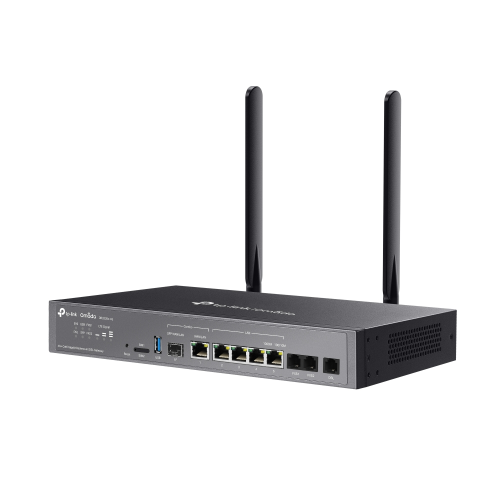

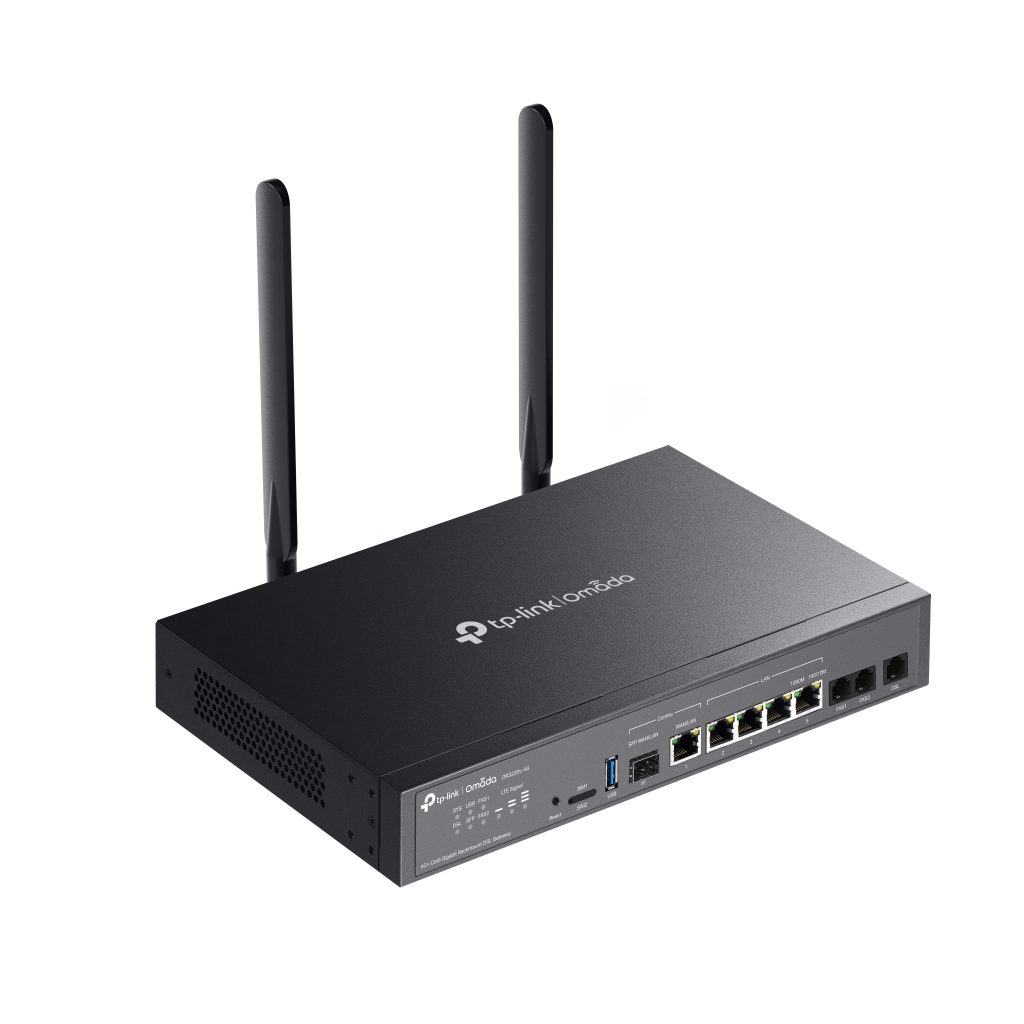

OMADA DR3220v-4G, 4 Port, 4G+Cat6 2,4Ghz, 1 Combo SFP Port, 2 FXS Port, Sim Yuvalı, Gigabit Rackmount DSL Gateway

Ürünün Fiyatı:12.315,00
Fiyatlarımıza KDV Dahildir.
Tek Çekim Fiyatı:12.566,00
Sepete Ekle
Yorum yapılmamış.
Aynı gün kargoya verilir
17:30`a kadar verilen siparişler aynı gün kargoya verilir.

GÜVENLİK
Access Control Source/Destination IP Based Access Control
Filtreleme • Web Group Filtering**
• URL Filtering
• Web Security**
ARP Denetleme • Sending GARP Packets
• ARP Scanning**
• IP-MAC Binding
Saldırı Koruması • TCP/UDP/ICMP Flood Defense
• Block TCP Scan (Stealth FIN/Xmas/Null)
• Block Ping from WAN
DONANIM ÖZELLİKLERİ
Arabirim • 1 Combo Gigabit SFP/RJ45 Port (1 SFP WAN/LAN Port + 1 WAN/LAN Port)
• 4 × RJ45 Gigabit LAN Ports
• 1 DSL Port
• 2 FXS Ports
Buton Reset Button
Güç Kaynağı 100-240V/50-60Hz 0.6A
Slot 1*USB 3.0 (supports USB LTE dongle and USB Storage)
Flash 256MB NAND
DRAM 512MB DDR4
Boyutlar ( W X D X H ) 11.6 × 7.1 × 1.7 in (294 × 180 × 44 mm) (Antenna dimensions not
included)
Anten LTE: Two 3dBi omnidirectional detachable antennas
SIM Slotu 1 Dual-SIM Nano SIM slot (4G+ Cat6)
Montaj Desktop/ Rack-mounting
Maks. Güç Tüketimi • 8.55 W (No Link)
• 24.4 W (Full load + USB )
PERFORMANS
GRE • Unencrypted: 491.9Mbps
• Encrypted: 244.3Mbps
WireGuard VPN 290Mbps
Eşzamanlı Oturum 150,000
New Sessions /Second 4,050
NAT (Static IP) 937.2 Mbps/936.1Mbps
NAT(DHCP) 945.8 Mbps /940.6Mbps
NAT(PPPoE) 942.9 Mbps/942.9Mbps
NAT (L2TP) 837.4 Mbps / 881.5Mbps
NAT (PPTP) 803.0 Mbps / 910.5 Mbps
IPsec VPN Throughput • ESP-SHA1-AES256: 526.6Mbps
• ESP-SHA256-AES256: 543.3Mbps
• ESP-SHA384-AES256: 549.0Mbps
• ESP-SHA512-AES256: 561.7Mbps
OpenVPN 129.3Mbps
L2TP VPN Throughput Unencrypted: 909.4 Mbps
Encrypted: 494.9Mbps
PPTP VPN Throughput Unencrypted: 897.5 Mbps
Encrypted: 190.8 Mbps
66 Byte Packet Forwarding Rate 1,453,489 pps / 1,453,488 pps
1,518 Byte Packet forwarding rate 81274 pps/ 91275 pps
TEMEL FOKSİYONLAR
WAN Bağlantı Türü • Static IP
• Dynamic IP
• PPPoE (supports MRU Configuration)
• PPTP
• L2TP
MAC Klon Modify WAN Address
DHCP • DHCP Server
• DHCPv6 PD Server (only in Standalone Mode)
• DHCP Options Customization
• DHCP Address Reservation
• Multi-IP Interfaces
• Multi-Net DHCP
IPv6 StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode
VLAN 802.1Q VLAN
IPTV IGMP v2/v3 Proxy, Custom Mode, Bridge Mode
GELİŞMİŞ FONKSİYONLAR
Bandwidth Kontrol IP-based Bandwidth Control
Load Balance • Intelligent Load Balance
• Application Optimized Routing
• Link Backup (Timing, Failover)
• Online Detection
NAT • One-to-One NAT
• Multi-Net NAT
• Virtual Server
• Port Triggering**
• NAT-DMZ
• FTP/H.323/SIP/IPSec/PPTP ALG
• UPnP
Session Limit IP-based Session Limit
VPN
GRE Only in Standalone Mode
SSL VPN 50 Tunnels
IPsec VPN • 100 IPSec VPN Tunnels
• LAN-to-LAN, Client-to-LAN
• Main, Aggressive Negotiation Mode
• DES, 3DES, AES128, AES192, AES256 Encryption Algorithm
• IPsec Failover
• IKE v1/v2
• MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm
• NAT Traversal (NAT-T)
• Dead Peer Detection (DPD)
• Perfect Forward Secrecy (PFS)
PPTP VPN • PPTP VPN Server
• PPTP VPN Client (10)§
• 50 Tunnels
• PPTP with MPPE Encryption
L2TP VPN • L2TP VPN Server
• L2TP VPN Client (10)§
• 50 Tunnels
• L2TP over IPSec
OpenVPN • OpenVPN Server
• OpenVPN Client (5)§
• 55 OpenVPN Tunnels
• "Certificate + Account" Mode
• Full Mode
WireGuard VPN ✔
YÖNETİM
Omada App Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management • Omada Cloud-Based Controller
• Omada Hardware Controller
• Omada Software Controller
Cloud Access Yes. Require the use of Omada Controller.
Servis Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)
Bakım • Web Management Interface
• Remote Management
• Export & Import Configuration
• SNMP v1/v2c/v3
• Diagnostics (Ping & Traceroute)
• NTP Synchronize1
• Port Mirroring
• CLI (only in Standalone Mode)
• Syslog Support
• TR-069 (data models of TR-098 and TR-181 are supported)
Zero-Touch Provisioning Yes. Require the use of Omada Controller.
OTHER
Network Services Enabled by Default Web Server
Manage and configure device through web (HTTP/HTTPS)
• Port: 80/443 Protocol: TCP
_____________________________________________________
VOIP Server
Monitor SIP messages
• Port: 5060 Protocol: UDP
_____________________________________________________
DHCP Server
Handle DHCP packets
• Port: 67 Protocol: UDP
_____________________________________________________
DNS
Handle DNS packets
• Port: 53 Protocol: TCP/UDP
DİĞERLERİ
Sertifika CE, RoHS
Paket İçeriği • DR3220v-4G
• Power Cord
• Ethernet Cable
• Phone Cable
• Rubber Feet
• SIM Card Eject Pin
• Rackmount Kit
• Antenna Extension Base
• Quick Installation Guide
Sistem Gereksinimleri • Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows
7/8/8.1/10/11
• MAC OS, NetWare, UNIX or Linux
Ortam • Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
• Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)
• Operating Humidity: 10% to 90% non-condensing
• Storage Humidity: 5% to 90% non-condensing

3G-4G DesteğiVar
Anten2 Adet
Ethernet Portu5 Adet
Kullanım YeriLoad Balance
Wi-Fi Veri Transfer Hızı350 MBPS
