TP-LINK CPE220 300Mbps2,4Ghz 12dbi OutdoorCPE 13km

Taksitli Fiyat

¨ 232,00
Fiyatlarımıza KDV Dahildir
Kart Tek Çekim¨ 230,00
Havale/EFT¨ 228,00
Türkiye'nin Her Yerine Kargo Sadece 5.90 TL
Kargoya teslimat süresi 1 iş günüdür.
17:30`a kadar verilen siparişler bugün kargoya verilir.
Sepete Ekle
Stokta Kalan son 9 ürün
DONANIM ÖZELLİKLERİ
İşlemci Qualcomm Atheros 560MHz CPU, MIPS 74Kc
Bellek 64MB DDR2 RAM, 8MB Flash

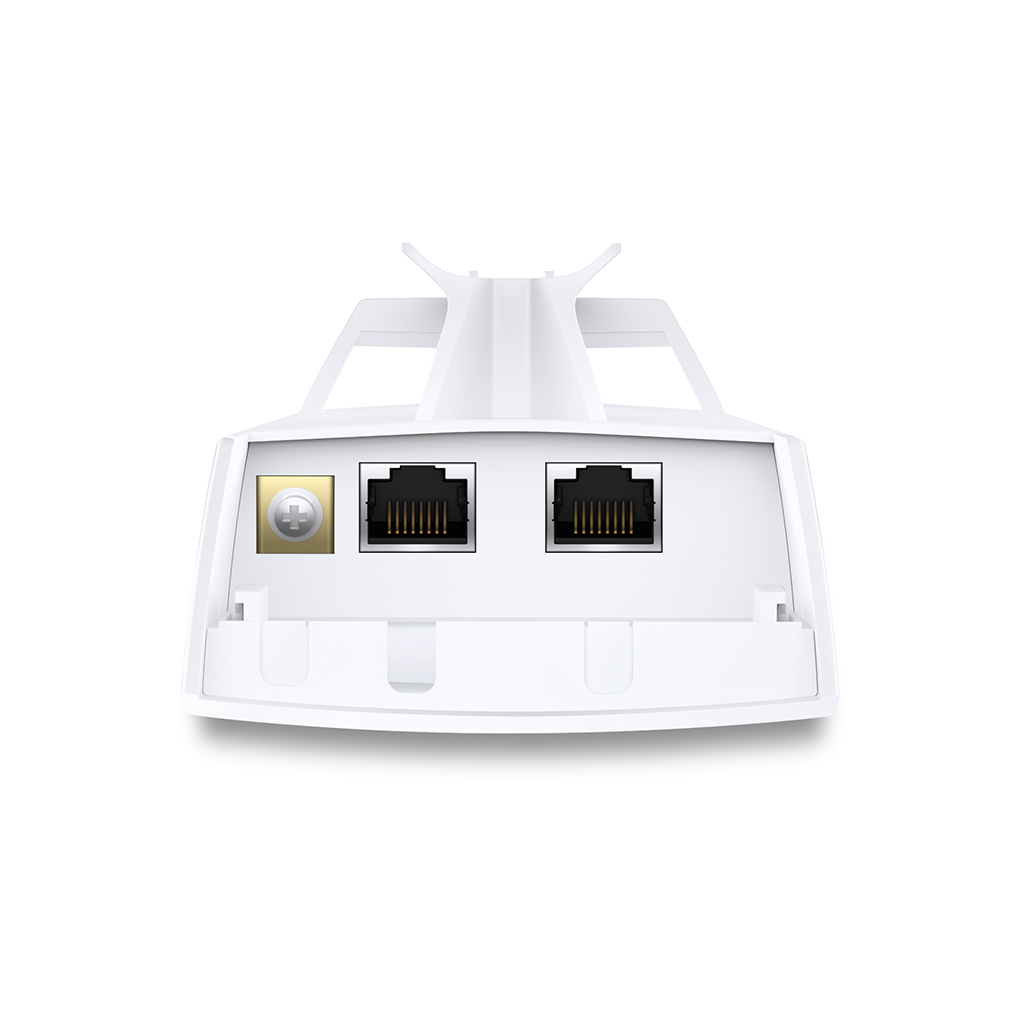

Arabirim 1 10/100Mbps Shielded Ethernet Port (LAN0,Passive PoE in)
1 10/100Mbps Shielded Ethernet Port (LAN1)
1 Grounding Terminal
1 Reset Button
Güç Kaynağı Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins)
Voltage range: 16-27VDC
Güç Tüketimi 10.8 Watts Max
Note: When deployed using Passive PoE, the power drawn from the power source will
be higher by some amount depending on the length of the connecting cable.
Boyutlar ( W X D X H ) 11×3.1×2.1 inch (276×79×60 mm)
Anten Tipi Built-in 12dBi 2x2 Dual-polarized Directional Antenna
Beam Width: 60° (H-Plane) / 30° (E-Plane)
Note: For more details, please refer to datasheet
Koruma 15KV ESD Protection
6KV Lightning Protection
Muhafaza Outdoor ASA stabilized plastic material
IPX5 waterproof Certification
KABLOSUZ ÖZELLİKLERİ
Kablosuz Standartlar IEEE 802.11b/g/n (with Pharos MAXtream disabled)
Tescilli Protokol TDMA Mode (with Pharos MAXtream enabled)
Kablosuz Hızı Up to 300Mbps (40MHz,Dynamic)
Up to 144.4Mbps (20MHz,Dynamic)
Up to 72.2Mbps (10MHz,Dynamic)
Up to 36.1Mbps (5MHz,Dynamic)
Frekans 2.4~2.483GHz
Note: Available operating frequency may vary depending on the limitations
of the countries or regions in which the device is used.
İletim Gücü 30dBm/1000mw (Adjustable power by 1dBm)
Note: Maximum transmission power may vary across different channels depending
on the limitations of the countries or regions in which the device is used.
YAZILIM ÖZELLİKLERİ
Kablosuz Konfigürasyonlar Pharos MAXtream TDMA Technology
802.11b/g/n Modes
Selectable Channel Width: 5/10/20/40MHz
Automatic Channel Selection
Transmission Power Control
Dynamic Frequency Selection (DFS)
WDS Enable/Disable
Security: WPA/WPA2, WPA-PSK/WPA2-PSK (AES/TKIP) Encryption, 64/128/152-bit WEP Encryption
SSID Broadcast Enable/Disable
Multi-SSID with VLAN Tagging (AP mode only)
Distance/ACK Timeout Setting
Wireless MAC Address Filter
Wireless Advanced:
> Beacon Interval/RTS Threshold/Fragmentation
>Threshold/DTIM Interval/AP Isolation/Short GI/Wi-Fi Multimedia
Yönetim Discovery and Remote Management via Pharos Control application
HTTP/HTTPS Web-based management
System Log
SNMP Agent(v2c)
Ping Watch Dog
Dynamic DDNS
SSH Server
Sistem Araçları Wireless Signal Quality Indicators:
Signal Strength/Noise/Transmit CCQ/CPU/Memory
Monitors: Throughput/Stations/Interfaces/ARP/Routes/WAN/DHCP
Spectrum Analyzer
Speed Test
Ping
Traceroute
Sistem Düzeyindeki Optimizasyonlar Optimized IGMP Snooping/Proxy for multicast applications
Hardware watch dog
POE ADAPTÖR ÖZELLİKLERİ
Boyutlar (H X W X D) 110×57×33.5mm
Giriş Akımı 0.8A Max @ 100VAC
Giriş Voltajı 100VA~240VAC @ 50Hz~60Hz
Çıkış 24VDC, 1.0A Max
+4, 5pins; -7, 8pins. (Support up to 60m Power over Ethernet)
Verimlilik >80%
Çıkış Voltajı 24VDC(+4,5pins; -7,8pins)
Giriş 100-240VAC, 50/60Hz
Güç Durum LEDleri 0~0.8A: Green
0.8A~1.0A: Red
Sertifikalar CE/FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark
Arayüzler 1 AC Jack with Earth Ground
1 10/100Mbps/1000Mbps Shielded Ethernet Port (Power + Data)
1 10/100Mbps/1000Mbps Shielded Ethernet Port (Data)
Buton Remote Reset Button
DİĞERLERİ
Sertifika CE, FCC, RoHS, IPX5
Paket İçeriği Outdoor Wireless CPE
24V 0.6A Passive PoE Adapter
Pole Mounting Straps
AC Power Cord
Installation Guide
Sistem Gereksinimleri Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 10, Windows 8, Windows 7,
MAC OS, NetWare, UNIX or Linux.
Note: We recommend you to use one of following Web browsers for an improved user
experience: Google Chrome, Safari, and Firefox. IE browsers are not recommended.
Ortam Operating Temperature: -40℃~70℃ (-40℉~158℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~95% non-condensing
Ethernet Portu2 Adet
AntenDahili
Wi-Fi Veri Transfer Hızı300 MBPS
Kullanım YeriDış Ortam
3G-4G DesteğiYok
