| DONANIM ÖZELLİKLERİ |
| Standartlar ve Protokoller |
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p |
| Arabirim |
• 16× 10/100/1000 Mbps PoE+ RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
• 2× 10/100/1000 Mbps non-PoE RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
• 2× Combo Gigabit SFP Ports |
| Ağ Medyası |
• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 1000BASE-X MMF, SMF |
| Fan Sayısı |
2 Fans |
| Fiziksel Güvenlik Kilidi |
Yes |
| Güç Kaynağı |
100–240V AC, 50/60 Hz |

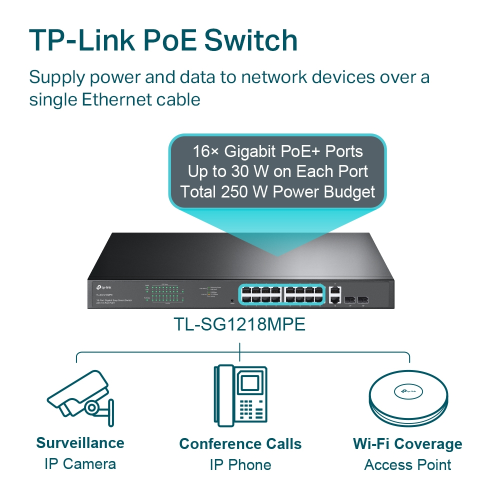

| PoE+ Portları (RJ45) |
• Standard: 802.3at/802.3af compliant
• PoE+ Ports: Ports 1–16
• Power Supply: 250 W |
| Boyutlar ( W X D X H ) |
17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm) |
| Montaj |
Rack Mountable |
| Maks. Güç Tüketimi |
• 21.4 W (220/50Hz. no PD connected)
• 296.3 W (220/50Hz. with 250 W PD connected) |
| Max Heat Dissipation |
• 72.97 BTU/h (no PD connected)
• 1010.38 BTU/h (with 250 W PD connected) |
| PERFORMANS |
| Anahtarlama Kapasitesi |
36 Gbps |
| Paket Yönlendirme Hızı |
26.78 Mbps |
| MAC Adres Tablosu |
8K |
| Paket Buffer Belleği |
4.1 Mbit |
| Jumbo Frame |
10 KB |
| YAZILIM ÖZELLİKLERİ |
| Quality of Service |
• Support Port-based 802.1p/DSCP priority
• Support 4 priority queues
• Rate Limit
• Storm Control |
| L2 Özellikleri |
• IGMP Snooping V1/V2/V3
• Static Link Aggregation
• Port Mirroring
• Cable Diagnostics
• Loop Prevention
• PoE Auto Recovery |
| VLAN |
• Support up to 32 VLANs simultaneously (out of 4K VLAN IDs)
• MTU/Port/Tag VLAN
|
| Yönetim |
• Web-based GUI
• Easy Smart Configuration Utility
|
| İletim Metodu |
Store-And-Forward |
| DİĞERLERİ |
| Sertifika |
CE, FCC, RoHS |
| Paket İçeriği |
• TL-SG1218MPE
• Power Cord
• Installation Guide
• Rackmount Kit
• Rubber Feet |
| Ortam |
• Operating Temperature: 0–50 °C (32–122 °F)
• Storage Temperature: -40–70 °C (-40–158 °F)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing |
| RJ45 Port | 18 Adet |
| RJ45 Veri Hızı | 1Gbps |
| PoE Port | 16 Adet |
| SFP Port | 2 Adet |
| Rack Kabin | Uyumlu |
| Yönetilebilir | Yönetilebilir |
| PoE Gücü Watt | 250W |
| Uplink Port | Yok |
| Materyal | Metal |
